24-12 Volt DC-DC Converter
Shipped from Tulsa, Oklahoma |
 |
(click images for large view)
25 Amp
$300.00
Shipping $17.00
(continental U.S.) |
10 Amp
$190.00
Shipping $15.00
(continental U.S.) |
General Information/ Specs:
Double battery 24 volt systems, as standard on most militar vehicles, are superior in many
ways to 12 volt models. Don't even think about converting to 12 volt! Also, it is not recommended
to draw power from one battery only to run 12 volt appliances. With the 24v-12v converter you can
run a standard 12 volt radio, CB radio, auxiliary lights or any other 12 volt unit from your 24
volt vehicle. For appliances with a higher amp draw, choose the 25 amp model. |

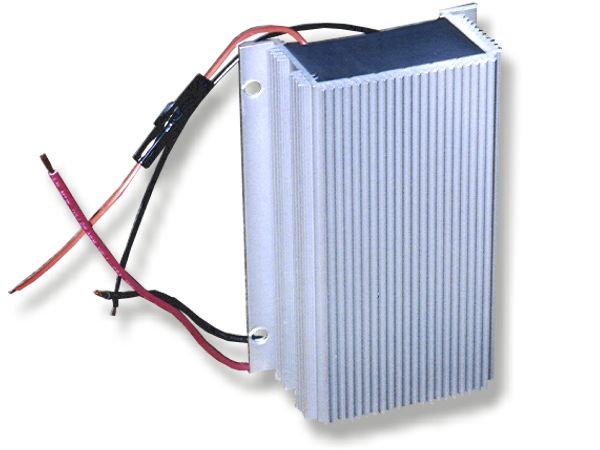

25 Amp Converter Specs
 8"H x 5"W x 23/4"D.
Weighs 6.0 lbs.
Weather Proof.
25 amp fused input.
Thermal protected.
Vibration resistant.
High efficiency.
Converts from a range of
 18-50 volts to 13.8 volts. |
. |

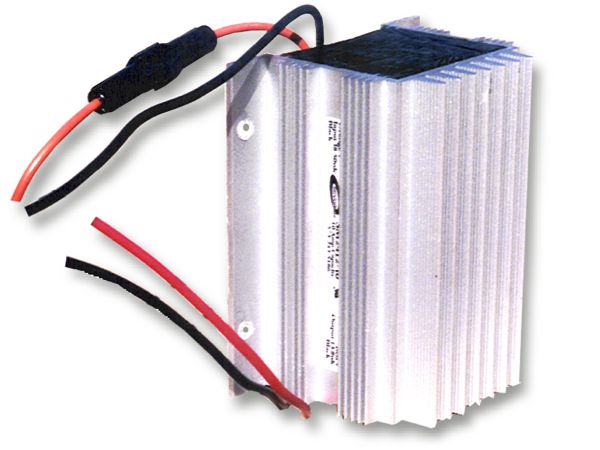

10 Amp Converter Specs
5"H x 31/2"W x 3"D.
Weighs 2.7 lbs.
Weather Proof.
10 amp fused input.
Thermal protected.
Vibration resistant.
High efficiency.
Converts from a range of
18-50 volts to 13.8 volts. |
24 volt System Info
24 volt electrical systems are found mostly in military vehicles. The system is made up of two standard 12 volt batteries. This differs from
a dual battery system in a 12 volt truck, however. Instead of being connected in parallel, the
two batteries are hooked up in series.
Parallel: Positives connected, and both negatives go to ground.
Series: Ground connected to negative terminal, positive connected to second negative, and
second positive connected to all units.
Never run 12 volt accessories from one battery, especially a 12 volt unit that draws alot of
power (winch, etc.). The danger is that power will be drawn from only one battery and the system
will become unbalanced.
Some Do's & Dont's with 24 volt systems:
Do not draw power from only one battery for ANYTHING.
Swap around the batteries several times in the season.
Always charge both batteries fully.
Both batteries must be of the same type.
High efficiency vs. low efficiency converters:
Both high and low efficiency converters are available. Low efficiency converters are cheaper,
larger and dissipate extra voltage by heat conversion. Units have large heat fins, and become
quite hot. High efficiency converters are superior, run cooler, but are more expensive.
|
|
. |
